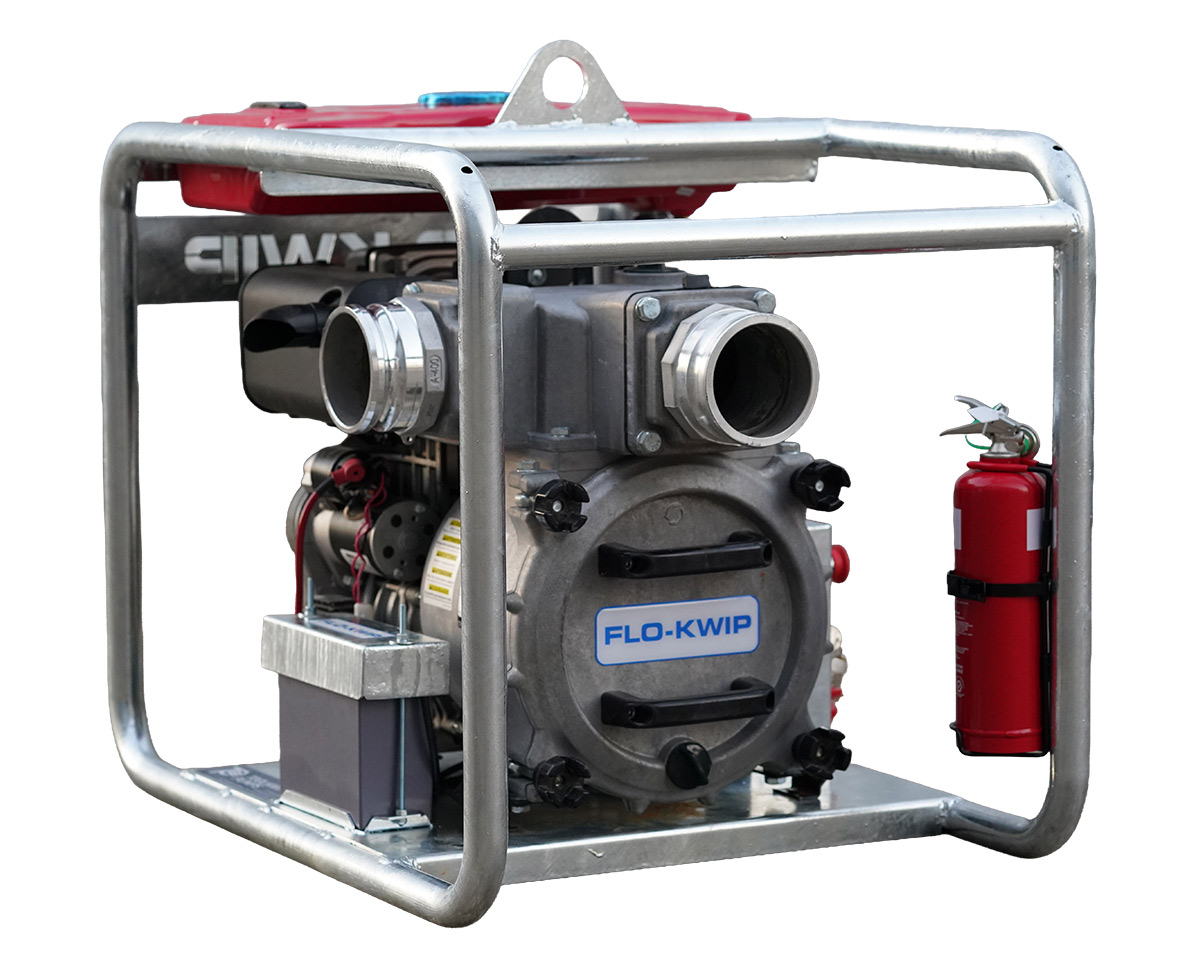

FLO-KWIP FTY-100 S/E 4” (100 mm) Heavy-Duty Diesel Trash Pump.

The FLO-KWIP FTY-100S/E is a 4” (100 mm) Heavy-Duty Diesel Trash Pump designed for rapid transfer of dirty water in tough, demanding conditions. Delivering flows up to 2,000 L/min and heads up to 30 metres, it is ideal for Civil Construction and Excavation, Quarry and Mine Dewatering and Flood and Emergency Response applications. Built into a heavy-duty galvanised 38 mm steel roll frame for added protection and durability, the FTY-100S/E also features a long-range fuel tank providing up to 11 hours run time. Robust, reliable and built for extended operation, it delivers dependable pumping performance with less downtime.

Key Features:

• • Heavy-Duty Galvanised Roll Frame with 38 mm steel tube: For long lasting durability
  • Long Range Fuel Tank: Up to 11 Hrs Runtime
  • Large Solids Handling Up to 27 mm: Efficiently pumps dirty water containing mud, sand and debris
  • Abrasion-Resistant Build: Hi-Chrome Iron Impeller and Ductile Cast Iron Volute
  • Quick Release front casing: For easy cleaning and access to the mechanical seal and impeller
  • Premium quality and reliability: with YANMAR Diesel Engine. Electric Start with Recoil Backup
  • Hard-Faced (Sil Carbide) Mechanical Seal: For enhanced abrasion resistance and extended seal life
  • Self Priming: Fast and efficient priming
  • *Mine Spec Extras available

TECH DATA

Inlet/Outlet:	4″ (100 mm)
Max. Flow:	2000 L/min
Max. Head:	30 m
Solids Handling Capacity:	27 mm diameter
Max. Suction Lift:	Up to 8 m
Weight	135 kg
