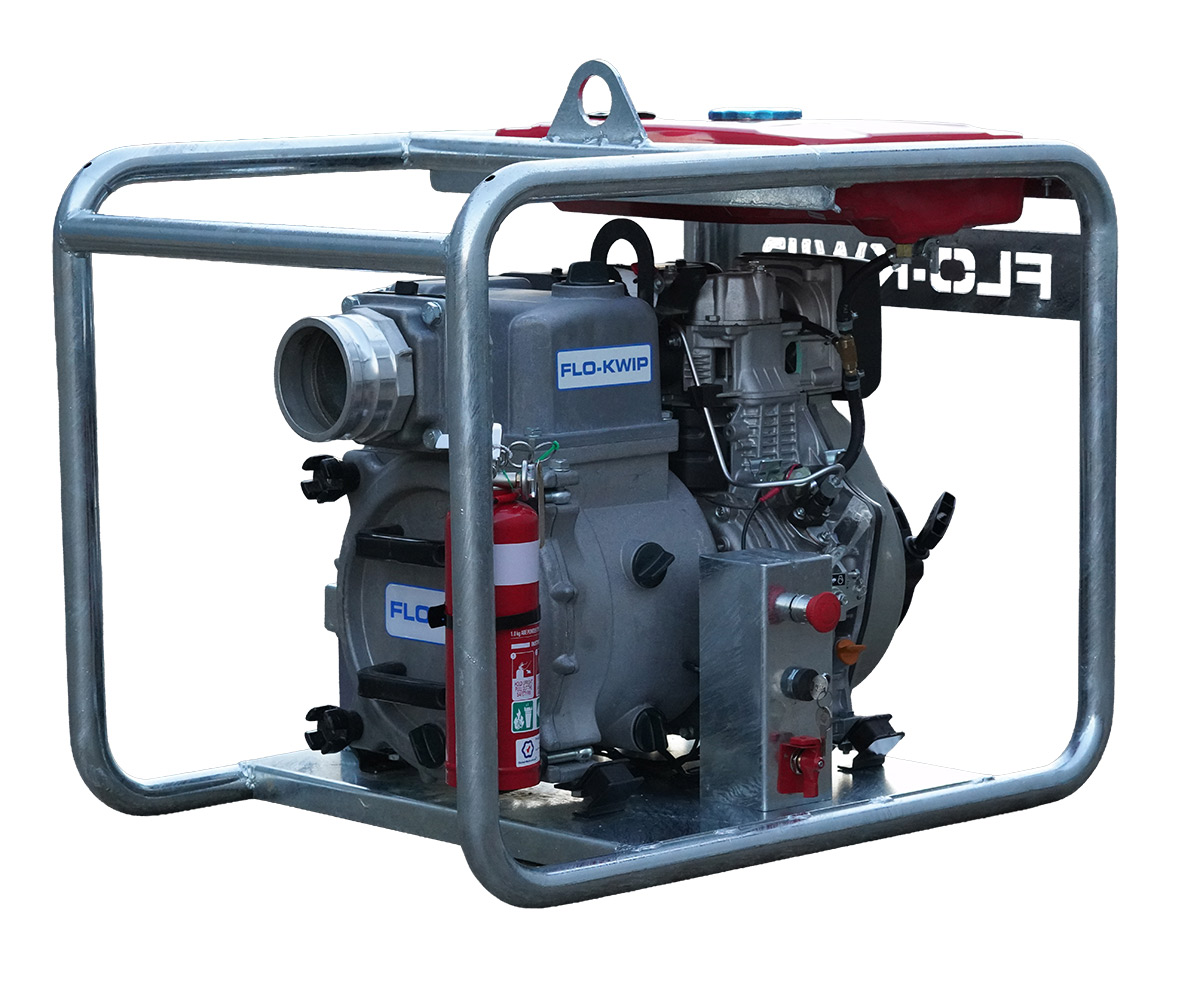

FLO-KWIP FTHZ-80 S/E 3” (100 mm) Heavy-Duty Diesel Trash Pump.

The FLO-KWIP FTHZ-80 S/E is a 3” (80 mm) Heavy-Duty Diesel Trash Pump designed for rapid transfer of dirty water in tough, demanding conditions. Delivering flows up to 1400 L/min and heads up to 27 metres, it is ideal for Civil Construction and Excavation, Quarry and Mine Dewatering and Flood and Emergency Response applications. Built into a heavy-duty galvanised 38 mm steel roll frame for added protection and durability.

Key Features:

• Heavy-Duty Galvanised Roll Frame with 38 mm steel tube: For long lasting durability
• 5L Fuel Tank: Up to 3.9 Hrs Runtime
• Large Solids Handling Up to 27 mm: Efficiently pumps dirty water containing mud, sand and debris
• Self Priming: Fast and efficient priming
• Abrasion-Resistant Build: Hi-Chrome Iron Impeller and Ductile Cast Iron Volute
• Quick Release front casing: For easy cleaning and access to the mechanical seal and impeller
• Premium quality and reliability: with HATZ Diesel Engine. Electric Start with Recoil Backup
• Hard-Faced (Sil Carbide) Mechanical Seal: For enhanced abrasion resistance and extended seal life
• Mine Spec Extras available

TECH DATA

Inlet/Outlet:	3″ (80 mm)
Max. Flow:	1400 L/min
Max. Head:	27 m
Solids Handling Capacity:	27 mm diameter
Max. Suction Lift:	Up to 8 m
